Getting Started

First time using TrueTERRAIN

The first thing you need to do is to either select an object or create an object

Create Landscape

The user can either use the Height Map, A.N.T (an addon built into Blender), or NodeScapes (another custom landscape Tool from the Developers of TrueTERRAIN).

If NodeScapes is not there it's because it is not been bought/installed! Get it on Superhive

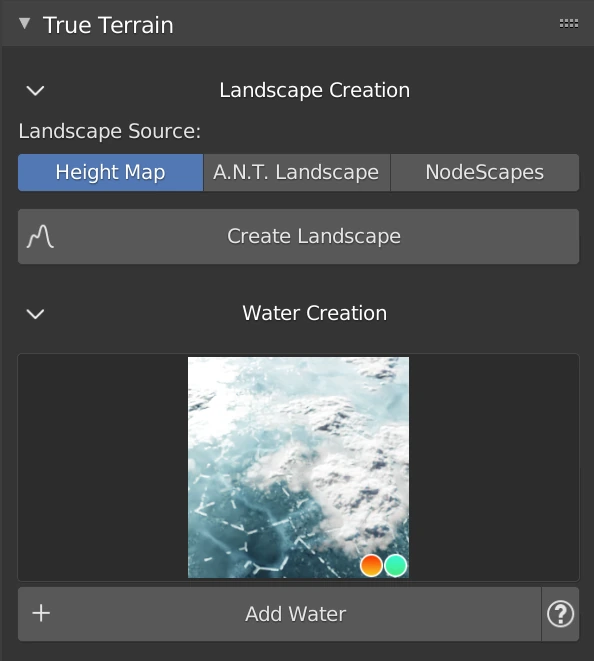

The user will see the options to either Create a Landscape or Create Water.

Create Landscape Using Height Map

Diplacement with Height Maps

Using at least 16 bit images is best when dealing with displacement otherwise you may end up seeing stepping in your landscape. Though if you're just going to cover it with grass and other asset it probably won't matter.

Clicking Create Landscape will bring up a file browser to select a heightmap image file. Once picked a plane will be created with basic a UV setup with a Displacement Modifier set to the selected heightmap. All changes after that will need to be done in the Modifiers section of the Properties panel.

Warning

If you scale up your mesh and then apply the scale you will then have to increase the Strength setting of the Displacement modifier

Create Landscape Using A.N.T. Landscape

A.N.T. Landscape Not Enabled

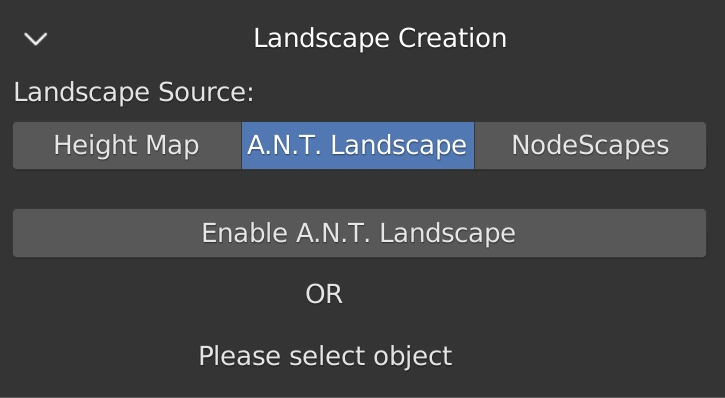

If A.N.T. Landscape addon is not enabled you’ll see the UI in the image below. Click Enable A.N.T Landscape to use this.

  • Once the A.N.T. Landscape addon is enabled Add Landscape will execute the A.N.T. Landscape creation function.

A.N.T. Landscape is not a part of TrueTERRAIN. We are including it for ease of use

Create Landscape Using NodeScapes

NodeScapes Not Installed

If NodeScapes is not there it's because it is not been bought/installed! Get it on Superhive

If NodeScapes is installed you can use any NodeScapes preset to create a base landscape from the TrueTERRAIN panel

Warning

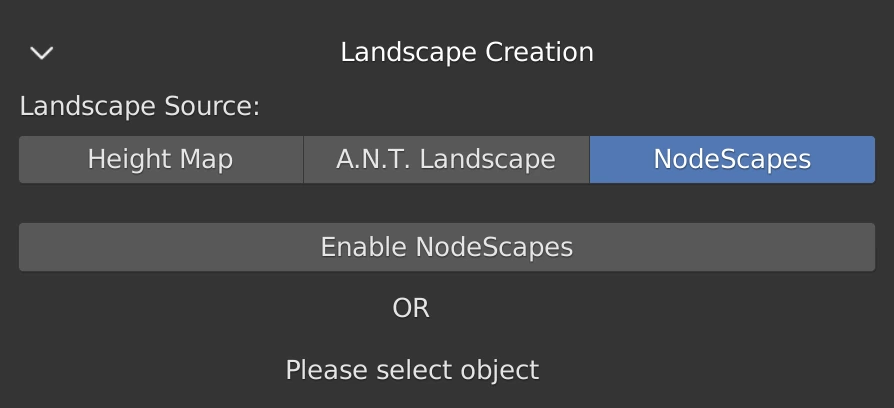

If NodeScapes is not enabled you’ll see the above image. See below on how to enable:

Once the NodeScapes addon is enabled you will see the presets you have loaded. Hitting Execute Preset will create a new object and apply the selected preset. If no presets are visible, hit the refresh button. The arrow button below the refresh button will give you options to import and export presets

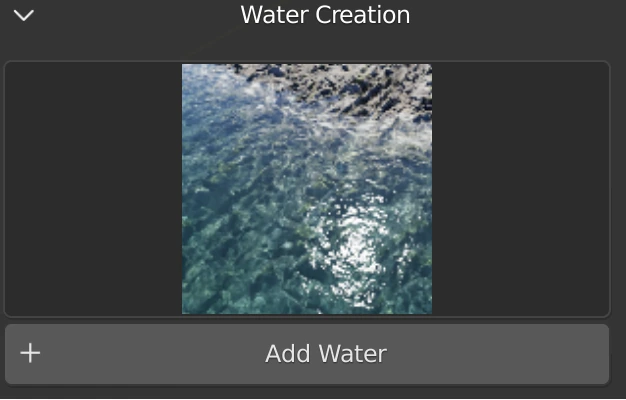

Create Water

  1. Select the water type from the icons
  2. Click the Add Water button
  3. See Water for more information

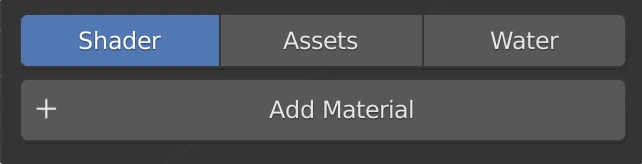

Add a Material

  1. Selecting an/the object will show you the Add Material button. Click to give the selected object the
  2. See Shader in to understand all of the material settings and functions

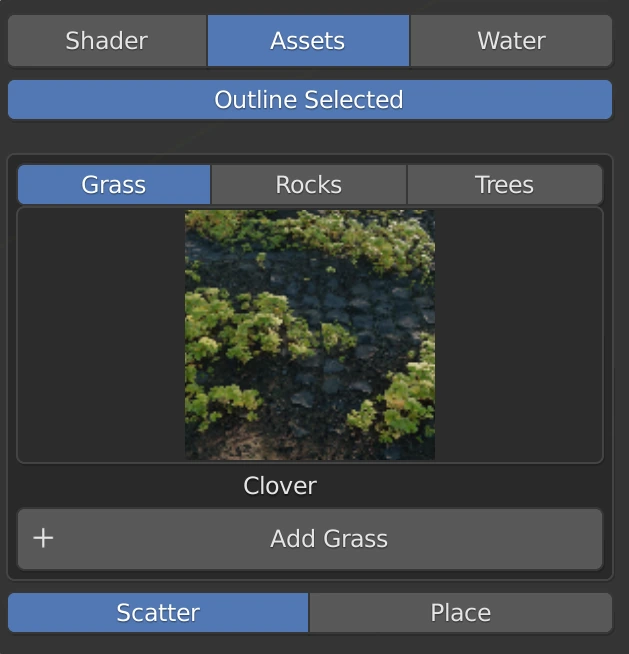

Add Assets

  1. Select your asset type by selecting the type in the menu above the icons
  2. Then select the or to choose how the asset(s) will be placed
  3. Then click the + Add (Type) button
  4. See Assets for more information
